DOBOT Magician is a multifunctional small-sized desktop robotic arm for practical training education, deploying multiple functions, such as 3D printing, laser engraving, etc.
Vivid & Interactive Experience
DOBOT Magician performs easy-to-understand operations that enable students to practice independently. The DOBOT Magician significantly improves teaching efficiency by providing multiple control options, including programming, APP, Bluetooth, Wi-Fi, mouse, and other devices.
Robust Multi-Robot Collaboration
Multi-robot collaboration enables a rich control system of several DOBOT Magicians by using the same device, leading to a powerful application set. Our multiple DOBOT Magicians help students enrich their knowledge.
Easy Secondary Development
DOBOT Magician is compatible with developing user applications through its 13 I/O ports, API, and released protocols. Teachers and students have various programming languages, including ROS, PLC, Microcontroller, and Arduino.
Wide Accessory Choice & Training Curriculum

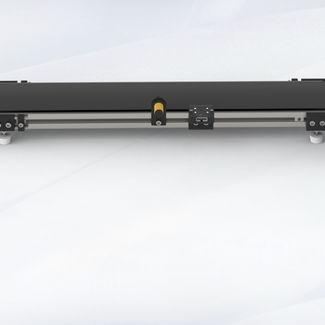

DOBOT Magician offers multiple accessories, such as linear rail, conveyor belt, visual, and crawler robots, suitable for different training projects. Various applications and training curricula are available in an open platform for robot education, like Industry 4.0, automation, and PLC.
Specifications
| Number of Axis | 4 |
| Payload | 500g |
| Max. Reach | 320mm |
| Position Repeatability(Control) | 0.2mm |
| Communication | USB / Wi-Fi / Bluetooth |
| Power Supply | 100 V - 240 V, 50/60 HZ |
| Power In | 12 V / 6.5A DC |
| Consumption | 60W Max |
| Working Temperature | -10°C - 60°C |
| Axis Movement | ||
| Axis | Range | Max Speed (250g workload) |
| Joint 1 base | -120° ~+120° | 320° / s |
| Joint 2 rear arm | -5°~+90° | 320° / s |
| Joint 3 forearm | -15°~+90° | 320° / s |
| Joint 4 rotation servo | -140°~+140° | 480° / s |
| Physical | |
| Net Weight | 3.4KG |
| Gross weight ( Standard Version) | 7.2KG |
| Gross weight ( Education Version) | 8.0KG |
| Base Dimension(Footprint) | 158mm × 158mm |
| Materials | Aluminum Alloy 6061, ABS Engineering Plastic |
| Controller | Dobot Integrated Controller |
| Robot Mounting | Desktop |
| Packing Size (L × W × H) | 421mm x 334mm x 352mm |
| Applications | |
| Software | DobotLab, DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor) |
| SDK ( Software Develop Kit ) | Communication Protocol, Dobot Program Library |
| Extensible I/O Interfaces | 1. I/O × 10 (Configurable as Analog Input or PWM Output) |
| 2. Controllable 12V Power output × 4 | |
| 3. Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included) | |
| 4. Stepper × 2 | |
| Endeffectors | ||
| 3D Printer Kit | Maximum Print Size (L × W × H) | 150 mm ×150 mm × 150mm (MAX) |
| 3D printing material | PLA | |
| Resolution | 0.1mm | |
| Laser * | Power Consumption | 500mw |
| Type | 405nm ( Blue laser ) | |
| Power | 12V , TTL trigger ( With PWM Driver ) | |
| Pen Holder | Pen Diameter | 10mm |
| Vacuum Suction Cup | Suction Cup Diameter | 20mm |
| Pressure | -35 Kpa | |
| Gripper | Range | 27.5mm |
| Drive Type | Pneumatic | |
| Force | 8N | |
