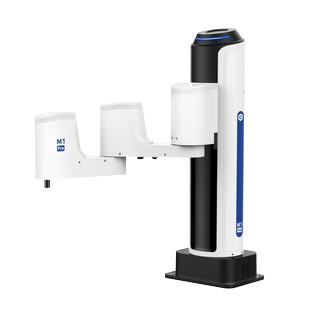

DOBOT M1 Pro is the second generation intelligent collision detection 4-axis SCARA robot with a built-in dynamic algorithm and operational software. It is ideal for industrial needs requiring high speed operations.
Fast Performance
Integrated controller and robot arm design enable plug and play and save the process of connections and installing wires through a high estimated speed of joints. The maximum joints' speed ranges from 180 to 1000 degrees, making M1 Pro time-saving.
Reliability and Safety
M1 Pro can collaborate with human operators without any safety risk. The front part of the arm is 40% narrower than the arm of a traditional industrial robotic arm. It can significantly decrease the damage to the machine, raising automation efficiency.
Easy Operation
M1 Pro supports wireless control on different devices with multiple programming options. When the operator turns on the free-to-drop function, the robot can easily drag and drop the arm to any position. It substantially saves time on testing and simplifies the process of programming.
Smart Performance
Designed for smart integration, M1 Pro is efficient to install. Its encoder interface supports conveyor tracking functionality and adjusts robot paths to the motion of a conveyor. DOBOT M1 Pro maintains the smoothness and guarantees consistent production, e.g., in the gluing application.
Parameters
| Model Number | M1 Pro | |
|---|---|---|
| Weight(kg) | 15.7 | |
| Effective Payload(kg) | 1.5 | |
| Reach(mm) | 400 | |
| Repeatability | ±0.02mm | |
| Power Supply | 100~240VAC, 50/60Hz | |
| Communication | TCP/IP, Modbus TCP, Modbus RTU | |
| Joint Range | J1 | ±85° |
| J2 | ±130° | |
| J3 | 5mm ~ 245mm | |
| J4 | ±360° | |
| Joint Maximum Speed | J1 | 180° /s |
| J2 | 180° /s | |
| J3 | 1000mm/s | |
| J4 | 1000° /s | |
